What is the Epistemic Stopping Gate and how does it prevent infinite research loops?

Autonomous research agents often halt prematurely from single-source bias or loop endlessly burning tokens. The Epistemic Stopping Gate formulates termination using dual predicates: Hard Gate G_t (coverage, independent verification, code execution, counterevidence, version validity) and Soft Gate S_t (semantic saturation delta <= 2% over 3 rounds). It returns 4 mutually exclusive states: STOP_SUFFICIENT, DEEPEN, PAUSE_BUDGET, or ABSTAIN_BLOCKED.

How does it protect against Gemini 3.8 Flash 64K token output limits?

Small, fast models like Gemini 3.8 Flash suffer from 64K token context cutoffs. Design OS Knowledge Builder solves this through: 1) File-backed atomic ledgers (evidence.jsonl) streaming 500B-1KB atoms directly to disk; 2) Idempotent state resumes (state.json); 3) Deterministic Python compilation scripts that assemble chunks without burning LLM tokens.

What is the Universal Knowledge Master Contract (UKMC.v1)?

UKMC.v1 is a strict specification requiring machine-routing frontmatter (id, domain, description, trigger tags), cryptographic provenance (SHA-256 digest, URI, captured timestamp), untrusted data quarantine boundaries, and 4 mandatory sections: Purpose, When to Use / When NOT, Core Knowledge Content, and Failure Modes.

Does Design OS Knowledge Builder require cloud services or send telemetry?

No. Design OS Knowledge Builder is 100% local-first and privacy-preserving. Telemetry is zero. Ingestion, validation, gating, and indexing execute entirely on your workstation.

MULTI-AGENT INFRASTRUCTURE · DESIGN OS

Universal Multimodal Knowledge Pipeline & Epistemic Stopping Gate.

Q: What is Design OS Knowledge Builder?

Design OS Knowledge Builder is a local-first multi-agent toolchain that normalizes multimodal assets (PDF, video, audio, diagrams, web) into an immutable Universal Knowledge Master Contract (UKMC.v1), with a 3-tier cost orchestration engine and a mathematically verified epistemic stopping gate.

Q: How does it protect against Gemini 3.8 Flash 64K token output limits?

Small, fast models like Gemini 3.8 Flash suffer from 64K token context cutoffs. Design OS Knowledge Builder solves this through: 1) File-backed atomic ledgers (evidence.jsonl) streaming 500B-1KB atoms directly to disk; 2) Idempotent state resumes (state.json); 3) Deterministic Python compilation scripts that assemble chunks without burning LLM tokens.

Q: What is the Universal Knowledge Master Contract (UKMC.v1)?

UKMC.v1 is a strict specification requiring machine-routing frontmatter (id, domain, description, trigger tags), cryptographic provenance (SHA-256 digest, URI, captured timestamp), untrusted data quarantine boundaries, and 4 mandatory sections: Purpose, When to Use / When NOT, Core Knowledge Content, and Failure Modes.

Q: Does Design OS Knowledge Builder require cloud services or send telemetry?

No. Design OS Knowledge Builder is 100% local-first and privacy-preserving. Telemetry is zero. Ingestion, validation, gating, and indexing execute entirely on your workstation.

Zero-dependency ingestion (PDF, video, audio, diagrams, web), 3-tier cost orchestration, and formal logic stopping gates for autonomous AI coding agents.

Install CLI Read GitHub Documentation

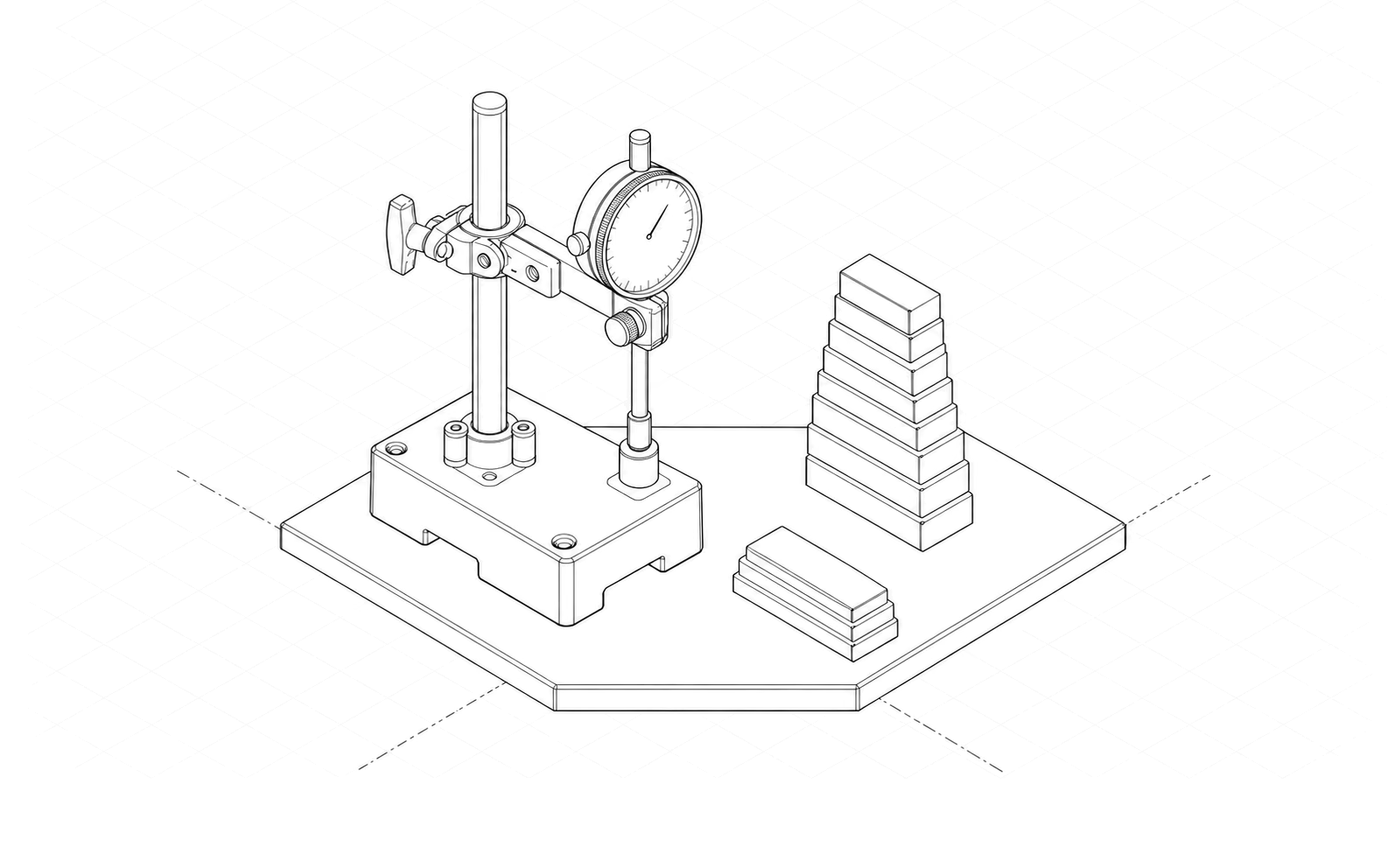

Design OS Knowledge Builder - Universal Ingestion & Epistemic Verification Engine — Figure 1: Fully seated mechanical assembly — Universal Multimodal Ingestion & Epistemic Verification Engine.
2:1 isometric · pure greyscale hairline #202020 · seated state

System Specifications

Repository: jangtrinh/design-os-knowledge-builder
Modalities: PDF · Audio · Video · Images · WebNative demux & OCR
Contract: UKMC.v1 SpecificationCryptographic provenance
Stopping Gate: Formal Logic ($G_t \land S_t$)11/11 scenarios verified
64K Defense: 3-Tier Cost Routingevidence.jsonl atomic ledger
License: MIT PermissiveFree commercial/personal use

Why Design OS Knowledge Builder, compared with alternatives

What this pipeline provides that ad-hoc scraping scripts and closed SaaS do not. Real engineering advantages first, followed by honest trade-offs.

Universal Multimodal Ingestion

Fingerprints PDFs with pdftotext, videos with ffmpeg under an explicit output directory, and images as a digest. A missing binary raises RuntimeError. This repository stores no topic files.

Formal Logic Epistemic Stopping Gate

Replaces arbitrary loop counters with mathematical assertions: dual hard/soft gates ensure agents only stop when evidence is truly sufficient, or cleanly label budget exhaustion.

64K Token Cutoff Defense

Streams atomic evidence units (500B–1KB) directly to evidence.jsonl. Fast models like Gemini 3.8 Flash never truncate, because final compilation is deterministic Python.

5-Perspective Council Peer Review

Knowledge is cross-examined by Builder (code), Red-Team (failure modes), Architect (contracts), Auditor (costs), and Operator (observability) lenses before graduation.

Where traditional platforms win: Cloud web GUIs (like NotebookLLM or Perplexity Spaces) offer instant consumer search and managed hosting. If your team does not need git version control, cryptographic provenance, or automated AI agent execution, those tools are faster to start with.

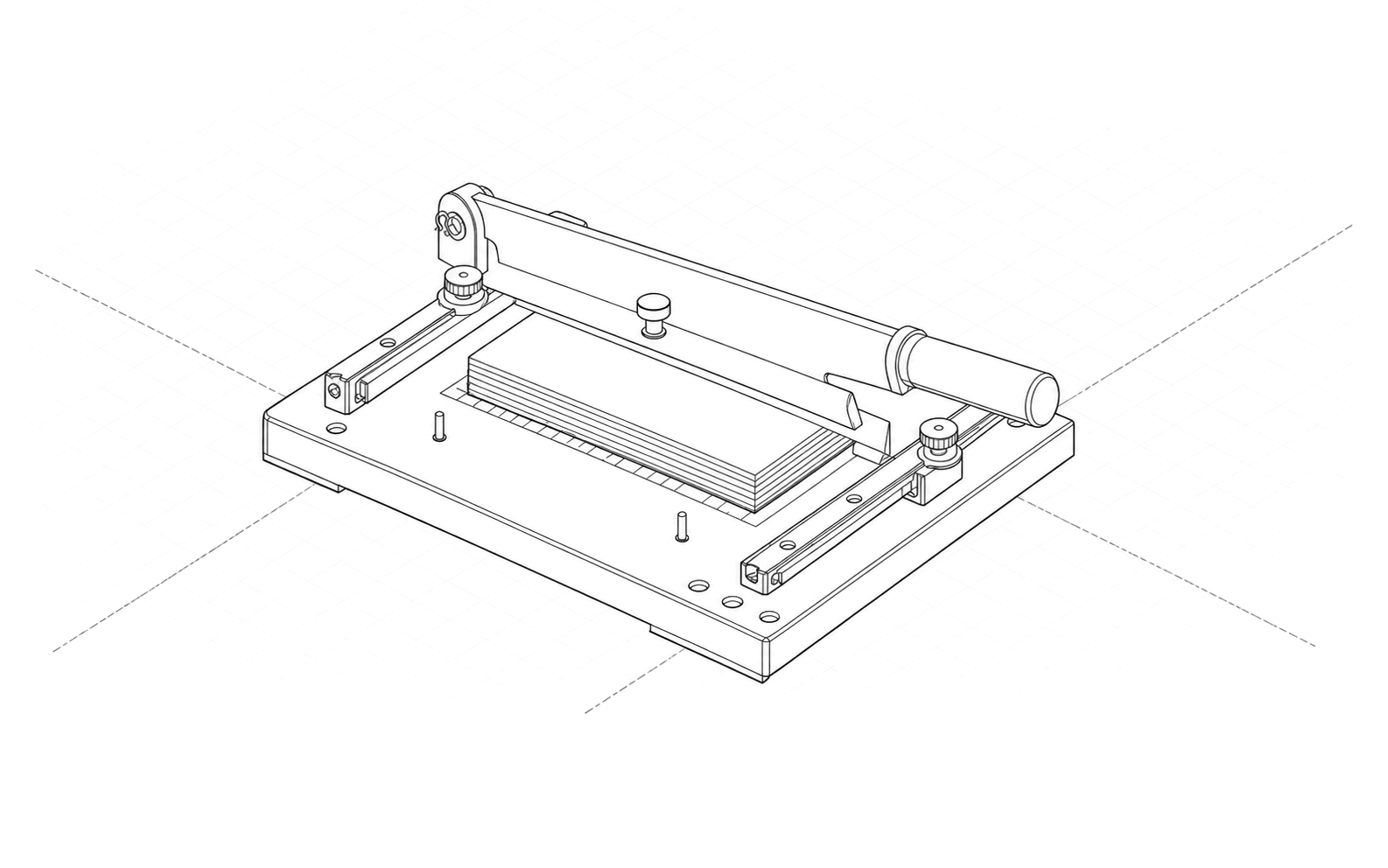

5-Stage Ingestion Pipeline

Raw media is ingested, demuxed, normalized, verified, and indexed with zero human intervention.

Asset Gate: Calculates SHA-256 fingerprint, identifies MIME type, and wraps raw input in quarantine boundaries.
Multimodal extractors: pdftotext -layout for PDFs, and ffmpeg under an explicit output directory for video. A missing binary raises RuntimeError. Images return a digest and a null diagram scaffold.
Contract Normalization: Formulates UKMC.v1 YAML frontmatter, source anchors, and KaTeX math formatting.
Verification Gate: Machine linter checks bilateral rules, failure mode coverage, and link integrity.
Index: index --root writes index.json with the sha256 of each file and skips _evidence/**.

Epistemic Stopping Gate (When is it ENOUGH?)

A rigorous mathematical definition of epistemic sufficiency vs deficiency for autonomous loops.

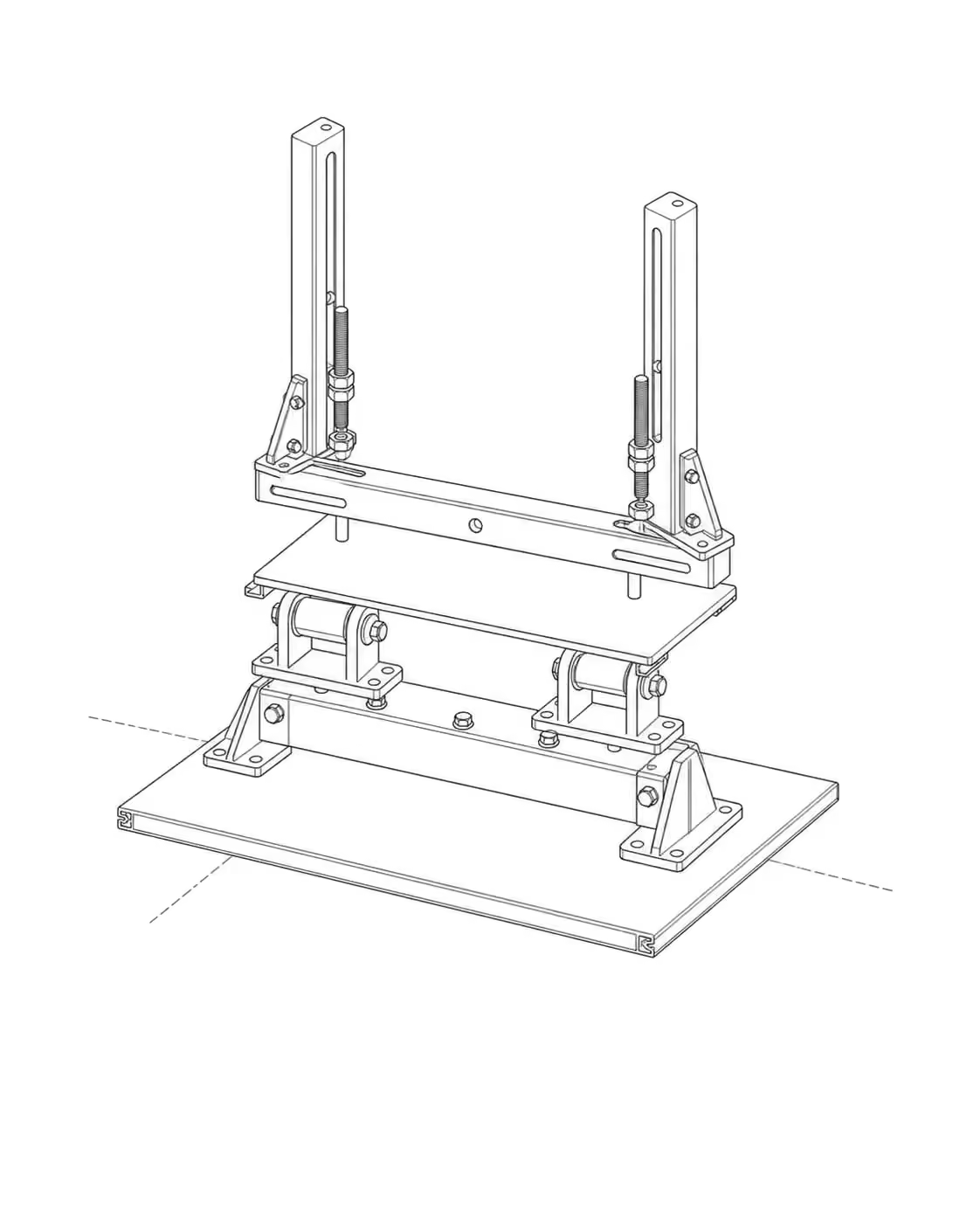

Epistemic Stopping Gate seated assembly — Figure 3: Epistemic Stopping Gate seated on calibration pins — evaluated against 512 boolean state combinations.
formal logic passed · verified by Codex Native Astra

`STOP_SUFFICIENT`

100% of required claims verified by independent sources and code execution; semantic saturation achieved ($\le 2\%$ delta over 3 rounds).

`DEEPEN`

Missing claims, single-source bias, version drift, or untested failure modes detected → triggers a targeted search probe.

`PAUSE_BUDGET`

Loop iterations or token allocations ran out while claims remain unverified. Clearly marked as incomplete (never misreported as done).

`ABSTAIN_BLOCKED`

Blocked upstream by paywalls, anti-scraping, or broken infrastructure without viable fallback.

The 5-Perspective Council

Before any knowledge entry is graduated into the core library, it must pass 5 peer-review lenses.

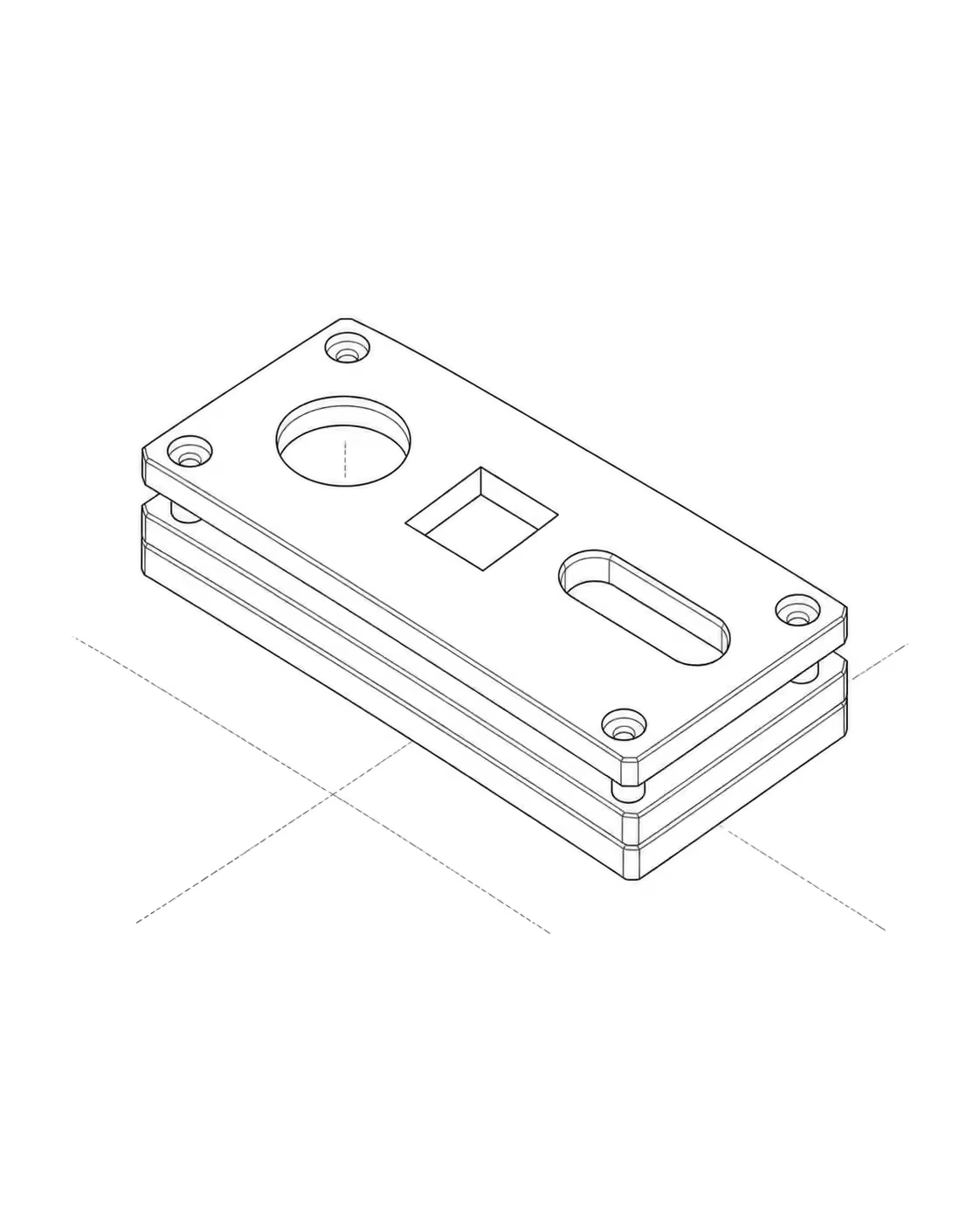

5-Perspective Council Comparator seated assembly — Figure 4: 5-Perspective Verification Comparator seated on calibration master block.
Builder · Red-Team · Architect · Auditor · Operator

Install once

Clone the repository and install with pip in editable mode.

git clone https://github.com/jangtrinh/design-os-knowledge-builder.git
cd design-os-knowledge-builder
pip install -e .

A practical loop

Ingest Multimodal Source:

python3 -m knowledge_builder.cli ingest ./docs/whitepaper.pdf

Evaluate Stopping Gate:

python3 -m knowledge_builder.cli gate --run-id run-01 --required 5 --verified 5 --sources 3

Lint UKMC Contract Conformance:

python3 -m knowledge_builder.cli lint ./knowledge/architecture/sample.md

Compile Machine-Readable Search Index:

python3 -m knowledge_builder.cli index --dir ./knowledge

Frequently asked questions

What is Design OS Knowledge Builder?

Design OS Knowledge Builder is an open-source, local-first multi-agent toolchain that turns messy technical assets (PDFs, talks, diagrams, web pages) into verified, structured Markdown under the Universal Knowledge Master Contract (UKMC.v1).

How does the Epistemic Stopping Gate avoid infinite research loops?

It computes dual predicates: Hard Gate $G_t$ checks required claim coverage, independent source threshold, code reproduction, and counterevidence coverage. Soft Gate $S_t$ checks semantic saturation delta (≤ 2% across 3 rounds). If budget runs out first, it explicitly triggers PAUSE_BUDGET instead of hallucinating completion.

How does it protect small models like Gemini 3.8 Flash from 64K token cutoffs?

Evidence atoms are written sequentially to evidence.jsonl. State is checkpointed in state.json so turns can resume idempotently. Final markdown assembly is performed deterministically with zero LLM generation tokens.

Can this be used with Claude Code, Codex Native, and Antigravity?

Yes. The packaged skill es-knowledge-forge can be installed into any AI harness. Standard CLI subcommands run seamlessly across all major AI agent runtimes.

What license is Design OS Knowledge Builder released under?

It is released under the permissive MIT license, permitting free commercial and private usage.
