Nodestack: modular desk storage, built and reviewed with evidence.

A Blender native modular-storage study: orange drawers, open shelves and a system verified across 2×2, 2×3 and 4×2 digital configurations. Published with authorized 102s assembly-guide video and native still imagery; raw geometry and unreviewed videos withheld pending reference rights verification. Coordinated through OpenAI Dots and Antigravity.

Watch assembly guide Explore gallery View repository

Digital print-test candidate. Zero physical samples recorded; manufacture remains BLOCKED pending physical printing, fit, load capacity and fatigue qualification.

Configurations: 2×2 / 2×3 / 4×2three arrangements checked
Parts checked: 145 digital instances32, 45, 68 in v16b package
Blender pipeline: Native data APICycles Metal 5.2.0 LTS
Coordination: OpenAI Dots + AGHuman direction & review
Physical status: 0 samples recordedManufacture BLOCKED
Reference design: SMACKMAX_NODESTACK // SERVICE PACK

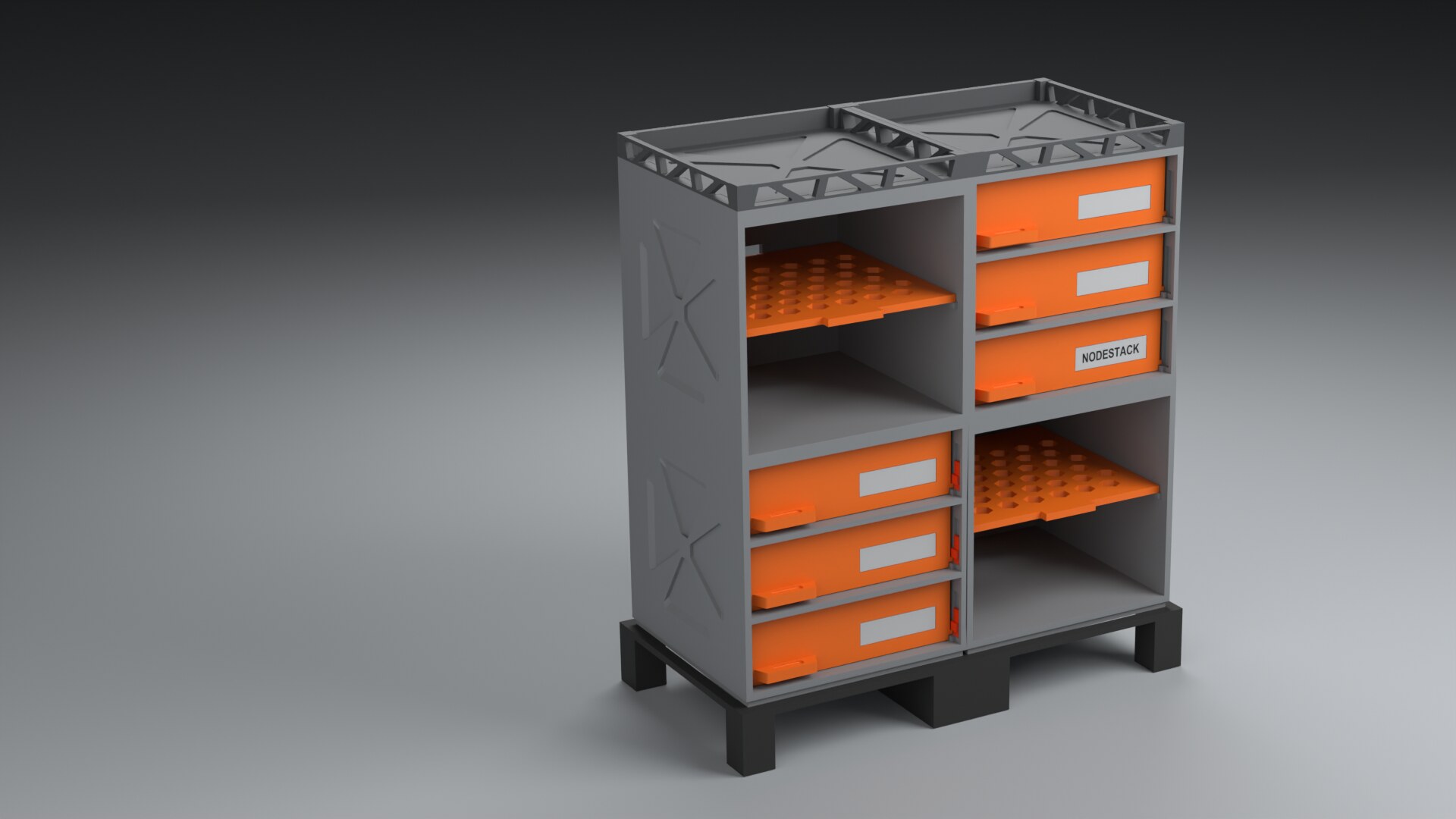

Nodestack 2×2 modular desk storage in studio render, native Blender E304 — Nodestack 2×2 canonical arrangement in studio render, Blender native Cycles Metal (E304 frozen base)
sha256 · 7876f8052687…

Video review · procedural assembly sequence

Assembly guide: 102-second modular construction

A procedural assembly sequence rendered at 1080p60 (6,120 frames). Demonstrates base frame joining, lower and upper module stacking, drawer insertion, coupler retention, and travel stop key engagement across seven defined chapters.

Nodestack procedural assembly guide (102 s · 1080p60 · 6,120 frames · revision 2)

video · 102s · 1920×1080 @ 60fps · 7 chapters

Provisional diagrammatic boundaries: The assembly video represents digital animation timings and nominal geometric sequencing. Actual physical workholding, printing tolerances, tag retention, surface friction, layer bonding, and structural stability under load remain unverified diagrammatic representations. It does not replace physical manufacturing qualification.

Visual evidence · 7 proof views

Verified visual proof gallery

Seven native render views inspect mechanisms, arrangement scales, internal CAD wireframe, exploded module breakdown and 32-part inventory. All stills are rendered native in Cycles Metal.

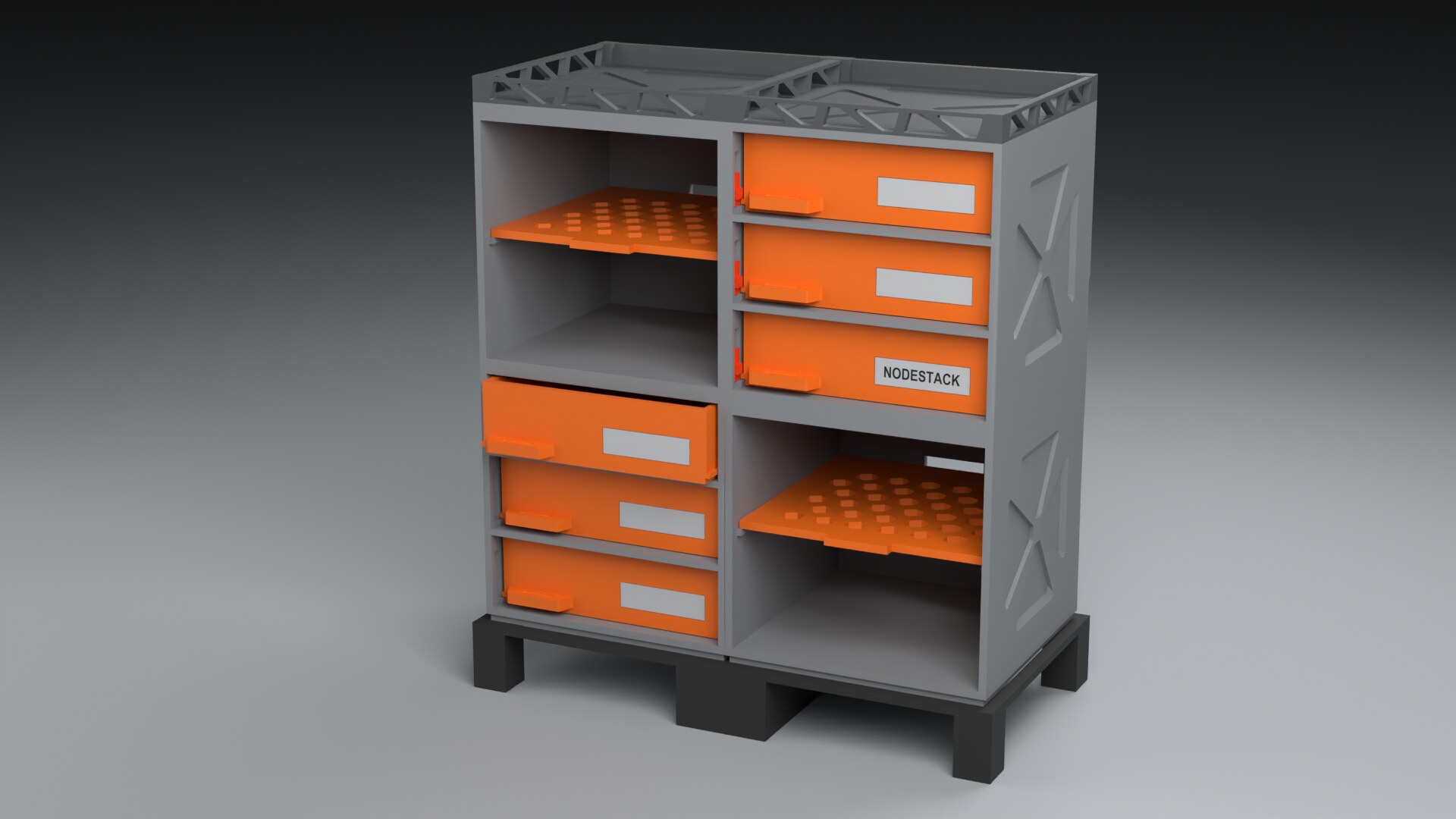

Nodestack orange drawer partially open showing internal bay clearance

Drawer stroke detail (frame 0650) · 0–70 mm nominal stroke sampled in native Blender rig (earlier E304 base)

sha256 · d39a85ad5dfe…

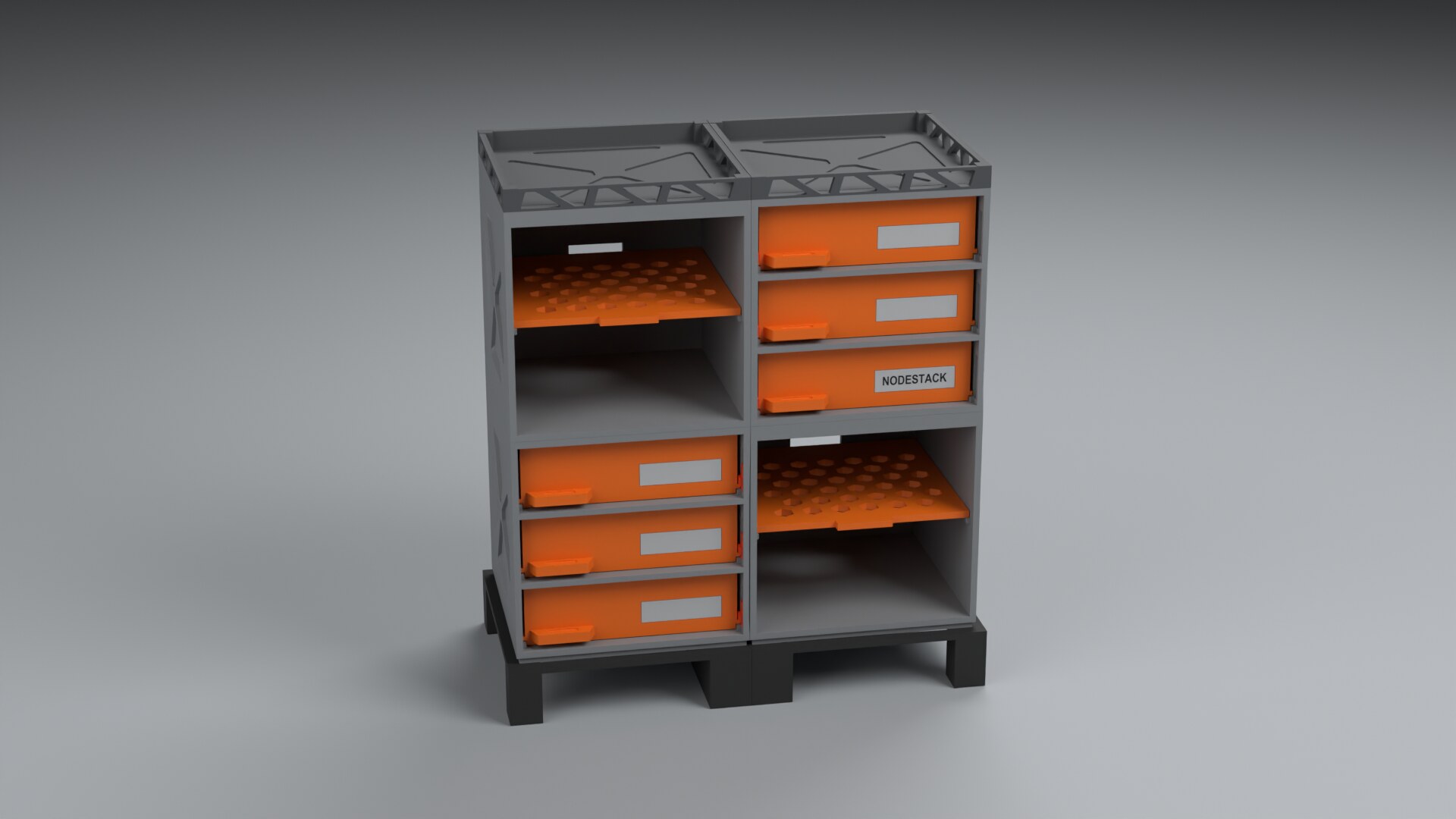

Nodestack 2×2 arrangement in studio three-quarter view

Canonical 2×2 arrangement (frame 1100) · 32-part v16b configuration depicted using earlier E304 native render

sha256 · 7f32cbe60eac…

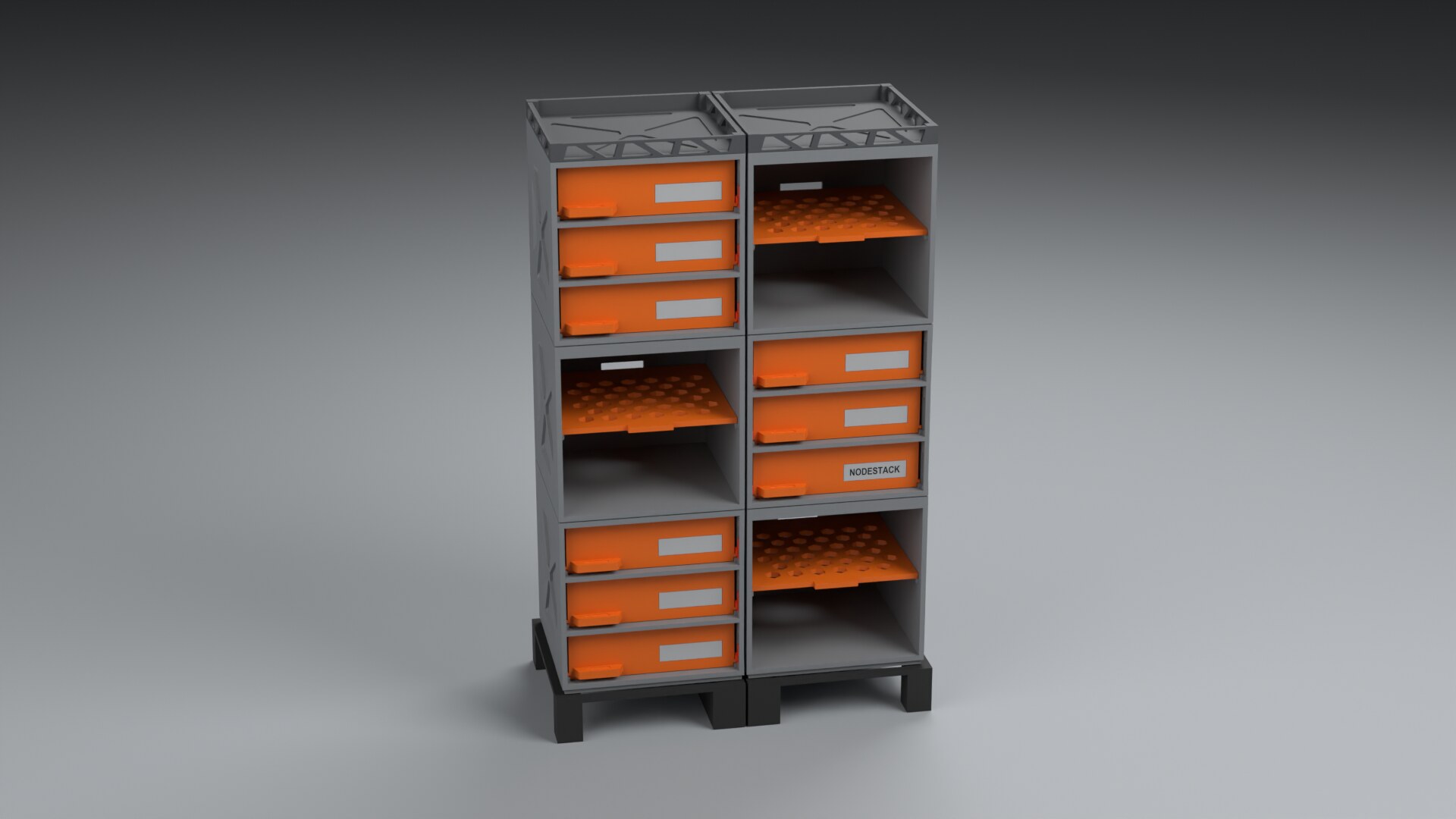

Nodestack 2×3 three-tier tower configuration in studio view

Tall 2×3 tower arrangement (frame 1350) · 45-part v16b configuration depicted using earlier E304 tall matching derivation

sha256 · feec039b2828…

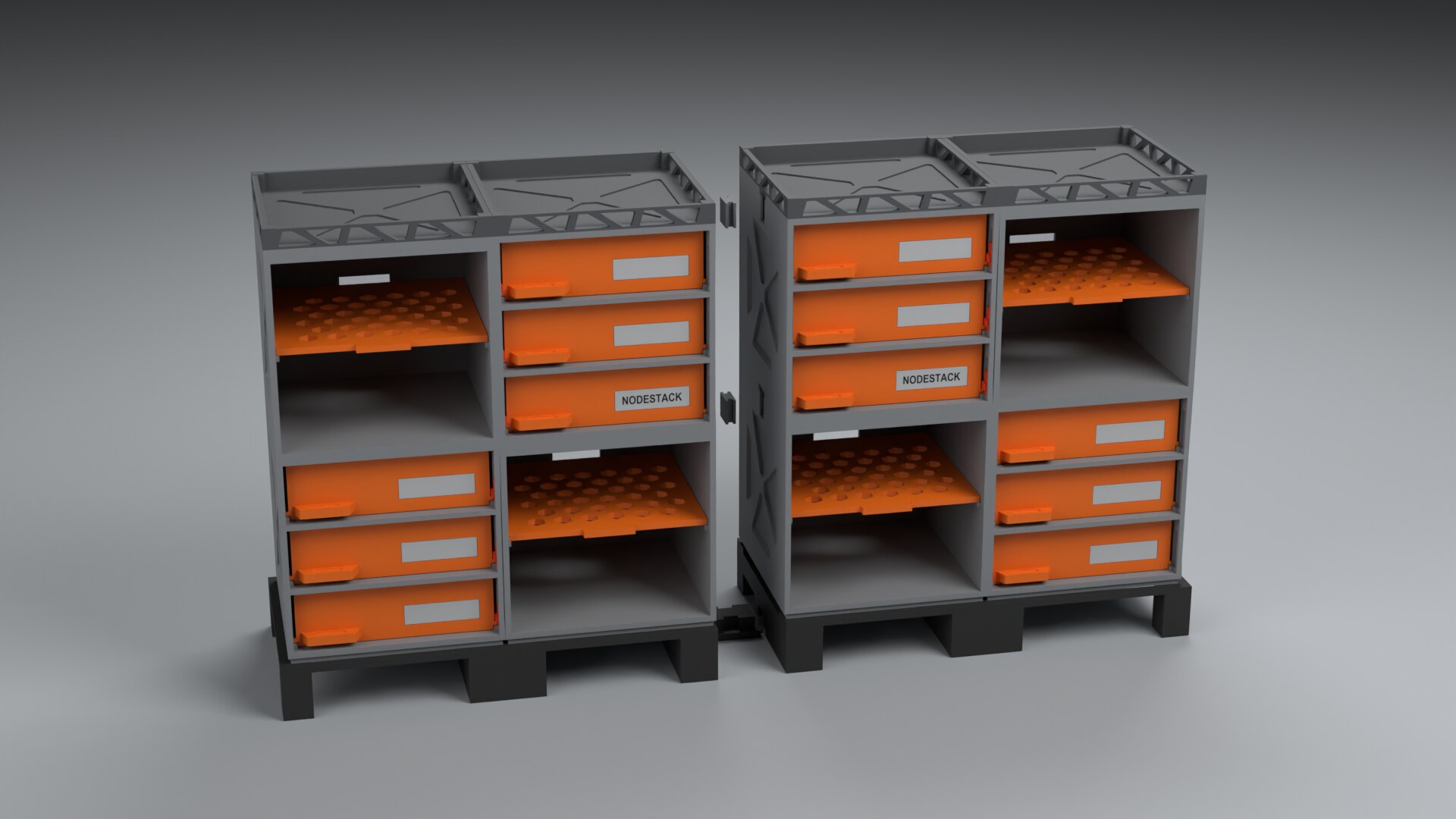

Nodestack 4×2 wide desk arrangement in studio view

Adjacent 4×2 wide arrangement (frame 1550) · 68-part v16b configuration depicted using earlier E304 adjacent derivation

sha256 · a772c0156d70…

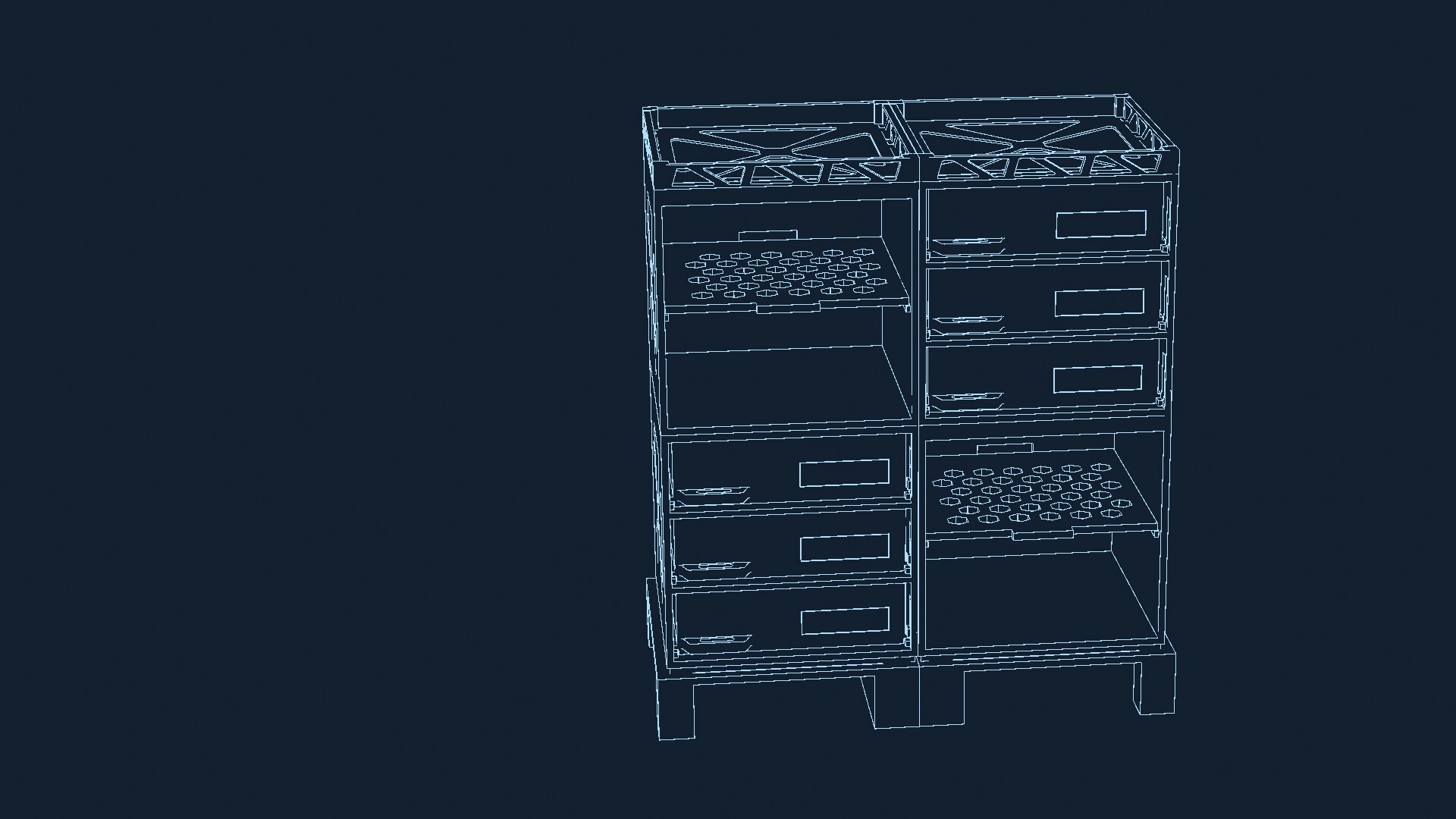

Nodestack geometric wireframe blueprint visualization

Blueprint geometry view (proof-0120) · Illustrative CAD wireframe visualization, not an authoritative manufacturing drawing (E304 base)

sha256 · aff971a460c2…

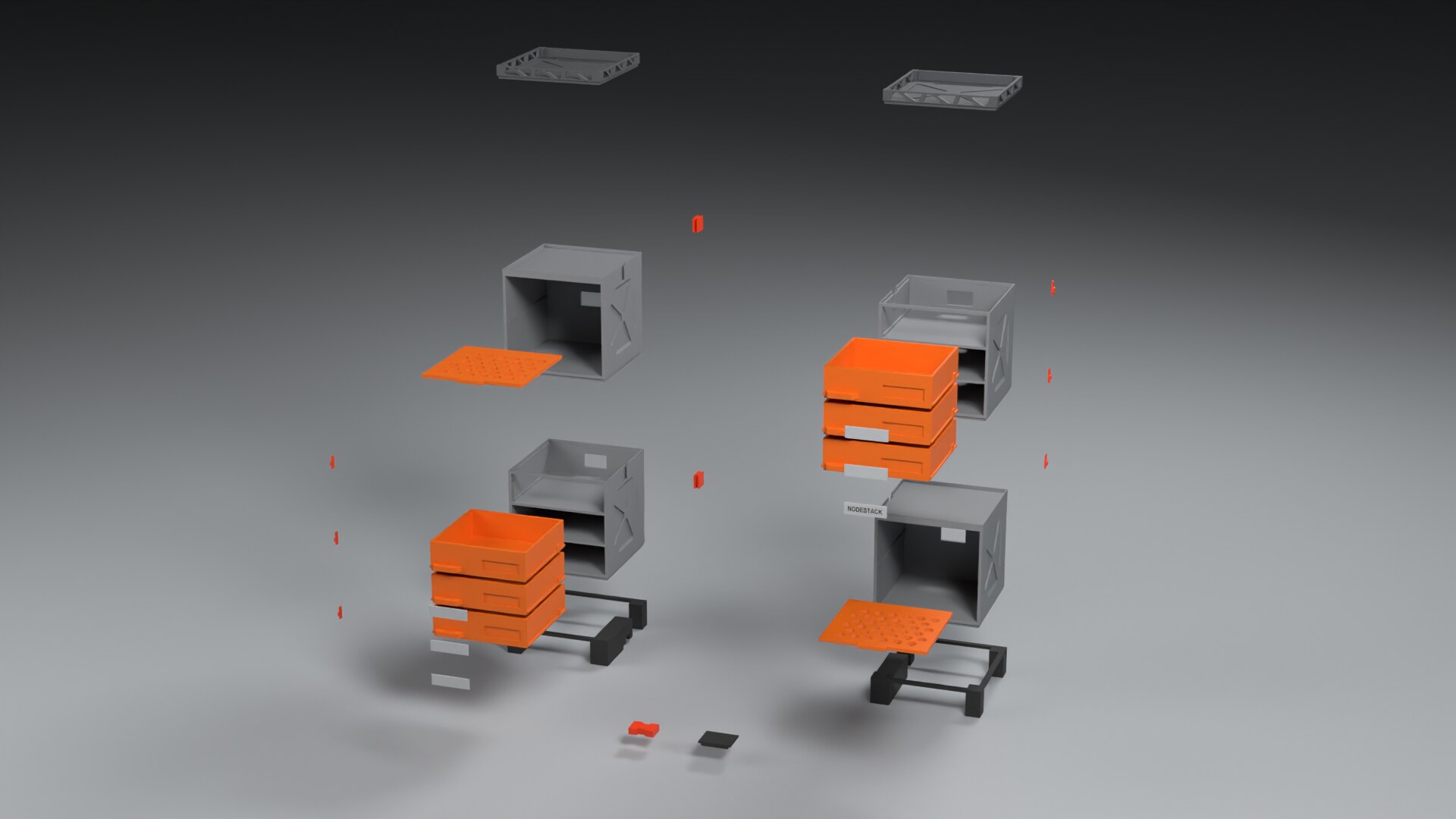

Nodestack exploded isometric view of modules and connecting pins

Exploded assembly breakdown (proof-0180) · Illustrative modular breakdown, not a verified physical assembly route (E304 base)

sha256 · 78170f684e0a…

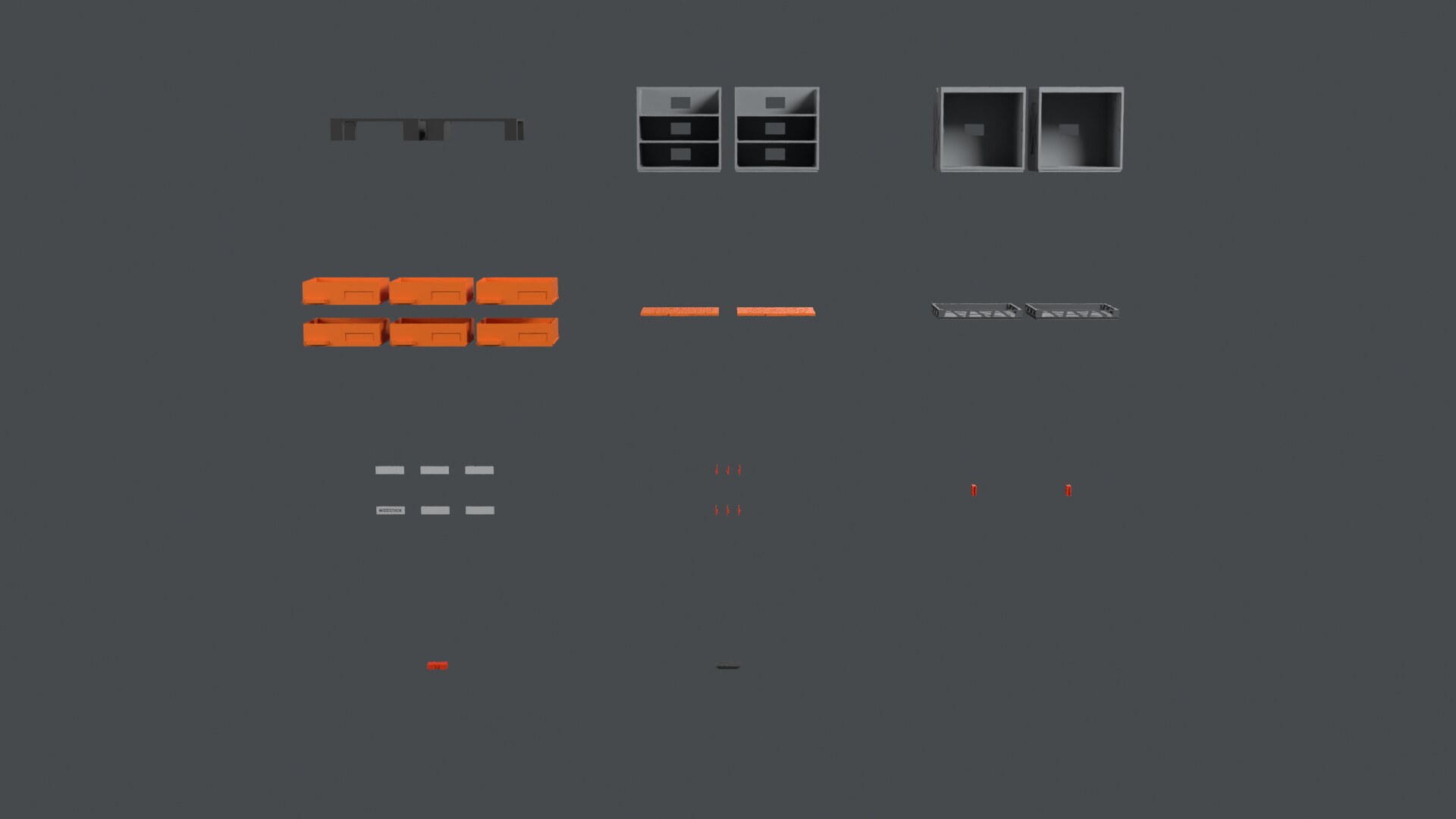

Nodestack modular parts catalog showing component inventory

Parts catalog (proof-0240) · Depicts 32 canonical parts; 45 and 68 part variants belong to the v16b package; not future physical qualification (E304 base)

sha256 · c5ba48f80efe…

Drawer stroke · native stills from verified scene hashes; full digests in media manifest.

01 / 07 · media · r03

Engineering analysis · base seating revision

Base seating: E304 baseline versus v16b candidate

The technical cross-section comparison below illustrates the base seating revision between the earlier frozen E304 baseline and the delivered v16b candidate.

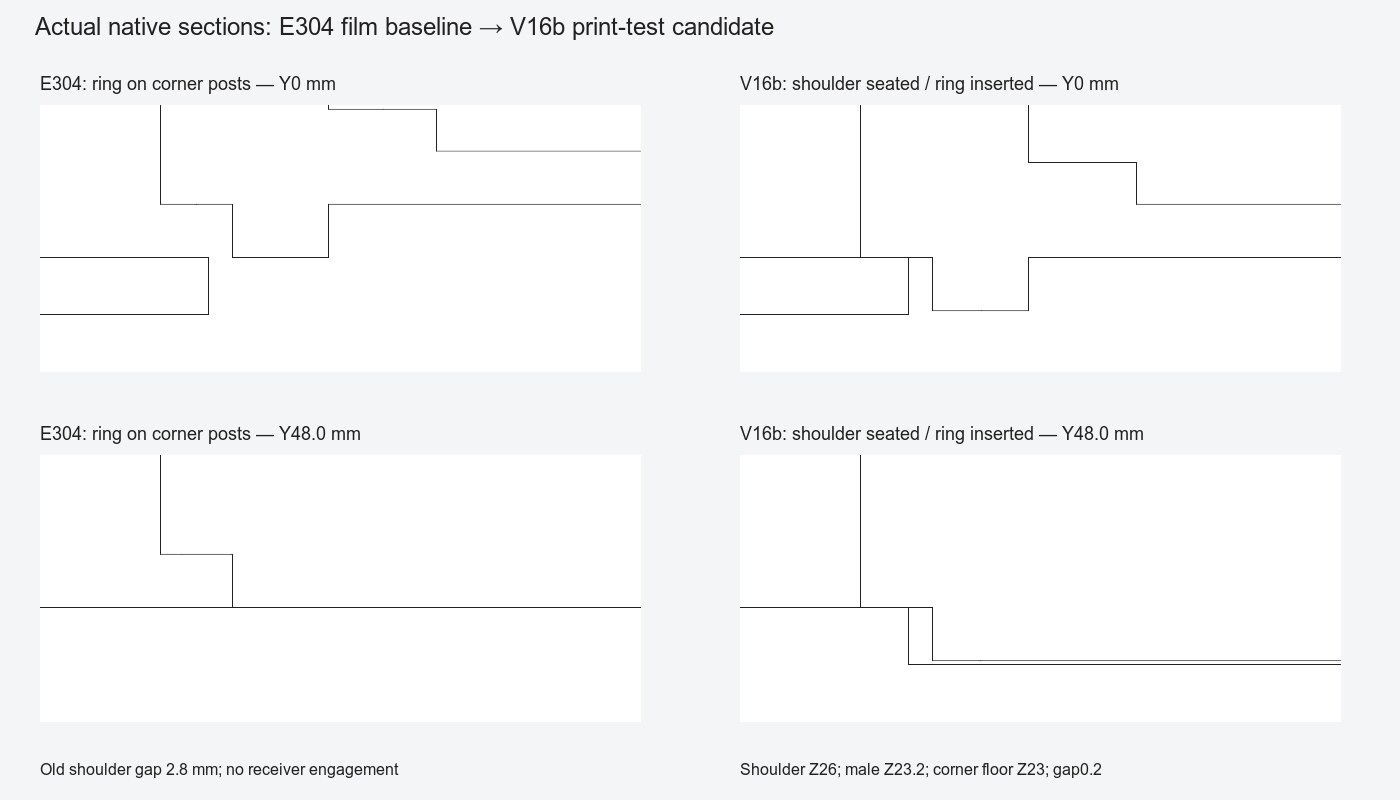

Direct technical comparison of base seating profiles between E304 baseline and v16b candidate — Direct technical section comparison: E304 frozen baseline (left) versus v16b print-test candidate (right)
source · nodestack-v16b-base-before-after.png

Baked dimension values: In the E304 baseline, the male top reaches Z 28.8 with the receiver mouth at Z 26.0, leaving a shoulder gap of 2.8 mm and zero receiver engagement (the male ring rests above corner posts without entering the receiver cavity). In the v16b print-test candidate, base seating is corrected: male bottom sits at Z 23.2, corner receiver floor at Z 23.0, with shoulder and foot rim aligned at Z 26.0. This establishes 2.8 mm vertical engagement, a 0.2 mm floor gap, and 0.4 mm nominal lateral clearance per side.

The base functions as gravity bearing and lateral registration only; it provides no positive vertical lock or physical load rating. The shoulder carries vertical contact while the receiver floor maintains clearance.

Configurations · measured assembly

Three verified arrangements

Modules assemble in vertical column and horizontal tier layouts using top plates, raised feet, inter-module links and rear alignment keys. All dimensions are measured directly from the delivered v16b package manifest.

Measured v16b digital assembly dimensions in millimetres
Arrangement	Parts	Width × depth × height	Digital hash
2×2 · canonical	32	208.0 × 108.0 × 229.9 mm	`ec9e1437481b…`
2×3 · tall	45	208.0 × 108.0 × 327.1 mm	`4fc4d7ff8e5d…`
4×2 · adjacent	68	408.0 × 108.0 × 229.9 mm	`340c4f760722…`

These values represent digital bounding bounds from the manifest, not physical load capacity or proof of unconstrained stacking.

Coordination & execution

Human direction, OpenAI Dots, and Antigravity

The project connected a human design brief to autonomous agent planning, native Blender geometry construction, and independent evidence-based auditing.

Human direction sets the target: The owner defined functional requirements, aesthetic criteria, drawer stroke targets, and feedback on module base seating.
Antigravity executes procedural builds: Antigravity drove the Blender 5.2.0 LTS Python data API to construct watertight geometry, assign procedural PBR shaders, and execute headless Cycles rendering.
Dots coordinates independent review: OpenAI Dots coordinated independent verification gates, auditing mesh topology, boundary manifolds, dimensional envelopes, and base-seating clearances.

Tool attribution factually describes the orchestration pipeline; it does not imply endorsement by OpenAI or external model providers.

Evidence & physical boundaries

What digital checks prove and what remains unverified

The delivered digital package passed automated gates for 32, 45, and 68 part configurations, covering closed manifold solids, bounding envelopes, and STL export/reopen checks.

Sampled drawer motion was evaluated across discrete poses from a 0–70 mm stroke. Discrete service checks verified key extraction and unstacking clearance. These tests establish discrete kinematic clearance, not continuous swept volumes or dynamic friction.

Retainer service routing: the corrected retainer route slides 26 mm before dropping. The earlier 24 mm route retains a known collision failure (approximately 1.92 mm³ per foot in nodestack-v16-ca2-connector-service-whole.json); the builder regression that misses that intermediate collision at -2 mm remains unresolved.

Physical manufacture is BLOCKED: Printer nozzle calibration, thermal shrinkage, FDM layer adhesion, surface friction, drawer rattle, structural fatigue, and tip stability remain unverified. Zero physical parts have been printed. Physical testing must begin with small mating subsets before full tower assembly.

Numerical caveats: raw seating and seam intersections reach up to 0.2738 mm³ in static poses; 64 / 90 / 136 unchecked items across the three configurations reflect undeclared bore-feature checks and report-only overhang areas.

Provenance & licensing

Reference design attribution and rights status

The reference design is NODESTACK // SERVICE PACK by SMACKMAX_ (@SMACKMAX) on Printables. This project is an independent procedural reconstruction and digital engineering study; it does not claim original design ownership.

The reference-design redistribution license has not been verified. The repository’s MIT software license covers codebase scripts, but does not grant third-party design or media distribution rights. At the owner’s direction, geometry downloads (STLs, .blend files, 3MF, ZIP archives) and unreviewed video files are withheld from public distribution.

Frequently asked questions

Questions & answers

What is Nodestack?

This project studies a modular desk-storage system with drawer and shelf bays, raised feet, top plates and serviceable connections. The reference design is NODESTACK // SERVICE PACK by SMACKMAX_ on Printables.

What does the assembly guide video show?

The assembly guide demonstrates a 102-second procedural construction sequence (1080p60, 6,120 frames) across seven chapters: base frame joining, lower structure placement, lower drawer and stop-key seating, upper structure placement, upper drawers and keys, top plates, and hero overview. Workholding, tag retention, and physical friction are provisional diagrammatic representations.

How did OpenAI Dots and Antigravity contribute?

OpenAI Dots coordinated Antigravity planning and building, followed by separate evidence-based reviews. Blender native assets and rendering supported the project. Human direction and feedback shaped the requirements and revisions. This is a description of the project workflow, not an OpenAI endorsement.

Which configurations were checked?

The v16b digital print-test package contains a 2×2 canonical arrangement with 32 parts, a 2×3 tower with 45 parts and a 4×2 adjacent arrangement with 68 parts. These checks cover those three configurations, not every possible combination.

Is this ready for manufacturing?

No. Physical printing, fit, friction, strength, load capacity and stability remain unverified. The package is a digital print-test candidate, and manufacture remains blocked pending physical evidence.

Why are there no raw geometry downloads?

The reference-design redistribution license has not been verified. The owner chose to publish the procedural assembly guide video, verified still imagery, and technical narrative only. Raw geometry files (Blender .blend, STLs, 3MF archives) and other unreviewed video renders are withheld from public distribution.

Do the still images show the v16b geometry?

The render source for gallery stills is the earlier frozen E304 base, with separately corrected modular scenes. The v16b print-test candidate improves base seating as shown in the engineering cross-section comparison. The assembly guide illustrates the procedural construction logic without replacing physical qualification.
